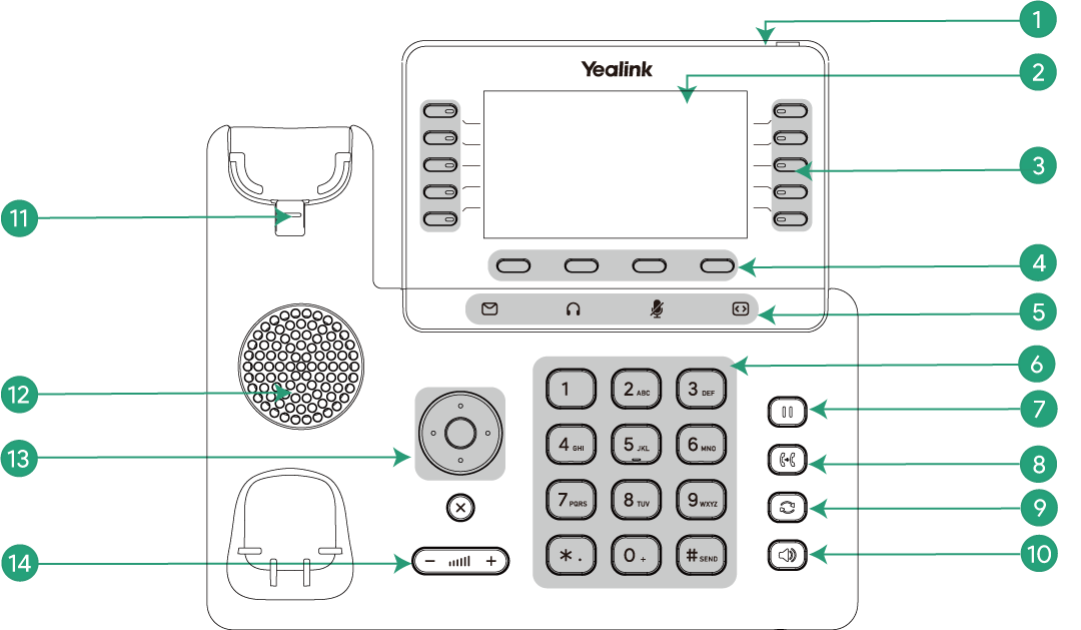

NO. | Item | Description |
1 | Power LED Indicator | Indicate call, message, and phone system status. |
2 | Phone Screen | Shows information about your phone, such as calls, messages, soft keys, time and date. |
3 | Line Keys | Access your phone lines and features. |
4 | Soft Keys | Access the function displayed on the screen above the soft keys. The soft keys change depending on what you are doing at the time. |
5 | MESSAGE Key | Access your voice messages |
5 | HEADSET Key | Toggle the headset mode on or off. |
5 | MUTE Key | Toggle the microphone on or off. |
5 | Page Key | Turn pages forward or backward. |
6 | Keypad keys | Allow you to enter numbers, letters, and special characters. If a menu item has an index number, you can use the keypad key to select the item. |
7 | HOLD Key | Place a call on hold or resumes a held call. |
8 | TRANSFER Key | Transfer a call. |
9 | REDIAL Key | Redial a previously dialed number. |
10 | Speakerphone Key | Toggle the speakerphone (hands-free) mode or not. |
11 | Reversible Tab | Secure the handset in the cradle when the phone is mounted vertically. |
12 | Speaker | Provide ringer and speakerphone audio output. |
13 | Navigation Keys | Scroll through information or options displayed on the screen. |
13 | OK Key | Confirm actions or answer incoming calls. |
14 | Volume Key | Adjust the volume of the handset, headset, and speaker. |
To place a call:
Answering Calls
Depending on your preference, there are multiple ways to answer an incoming call.
To answer an incoming call when you’re already on an active call:
Hold
To put an active call on hold:
Note: If you have the music-on-hold option assigned to your profile, calling parties put on hold will hear music while they wait for you to return to the call.
Mute
To place a call on mute while on an active call, press the Mute button. To unmute a caller, press the Mute button again.
Call Transfer
Attended Transfer
A consulted (or announced) transfer is performed when you announce the call to the recipient prior to transferring the call.
To conduct a consulted transfer while on an active call:
Blind Transfer
A blind (or unannounced) transfer takes place when you transfer a call to someone else without announcing the call first.
To conduct a blind transfer while on an active call:
Do Not Disturb
The Do Not Disturb feature is used to send all incoming calls directly to voicemail.
Enhanced Call Park
Enhanced call park is used to park and retrieve calls between us-ers within the same organization using the line keys on your desk phone.
Voicemail
Voicemail Setup
To set up your voicemail for the first time:
Note: If you get locked out, reach out to your site administrator.
Accessing Voicemail
A red Message Waiting Indicator light notifies you when you have a new voicemail message. To check your voicemail:
